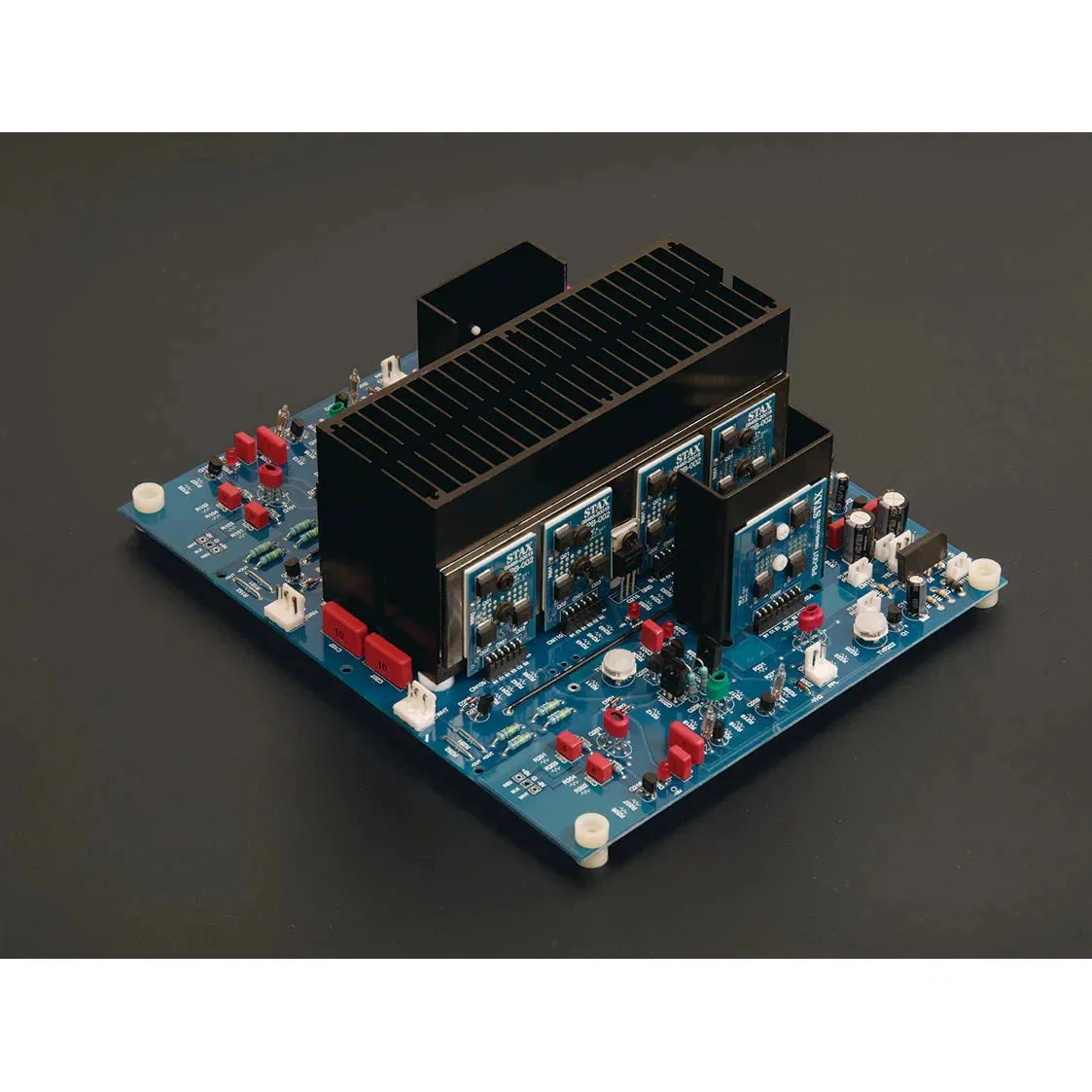

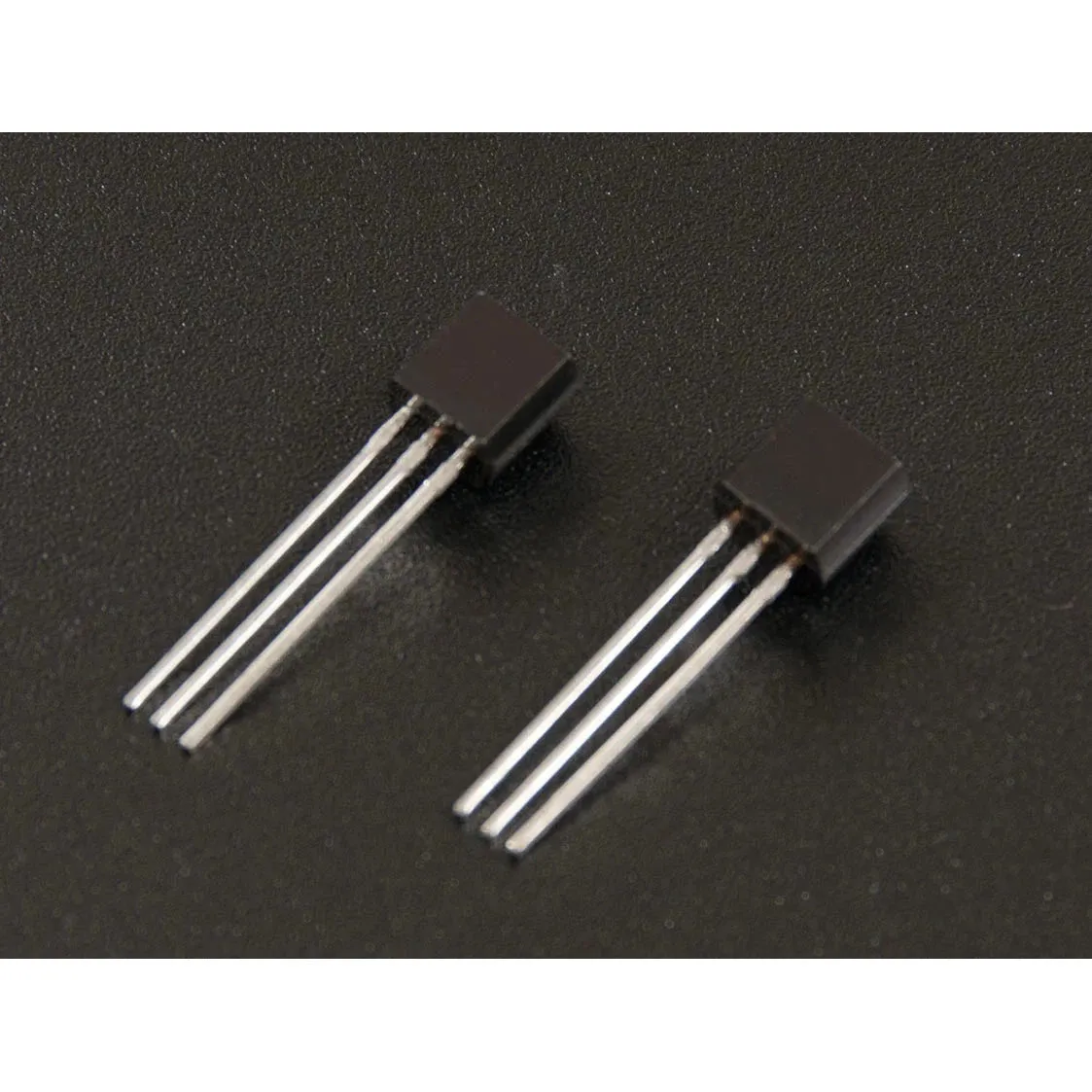

All semiconductor driver unit that has adopted custom-made low-noise dual FET at the first stage, and for the first time in STAX driver unit history J-FET has been employed at the second stage. The output of J-FET excellent in low-noise amplification as well as large current emitter follower circuit brings out the full performance of earspeakers. Even the music source with much high-frequency ingredients can easily be driven. The driver unit pursues an exact reproduction of musical details.
Specifications
- Type: All-stage FET configuration DC amplification driver unit
- Frequency response: DC - 100kHz (with one SR-009S)
- Gain: 60dB
- Harmonic distortion: 0.01% or less (1kHz/100Vrms output)
- Input impedance: 50kΩ (RCA), 50kΩx 2 (XLR)
- Maximum output voltage: 450Vrms (1kHz)
- Bias voltage: PRO 580V
- Operating temperature / humidity: 0 to 35 degrees C / less than 90% (non condensing)

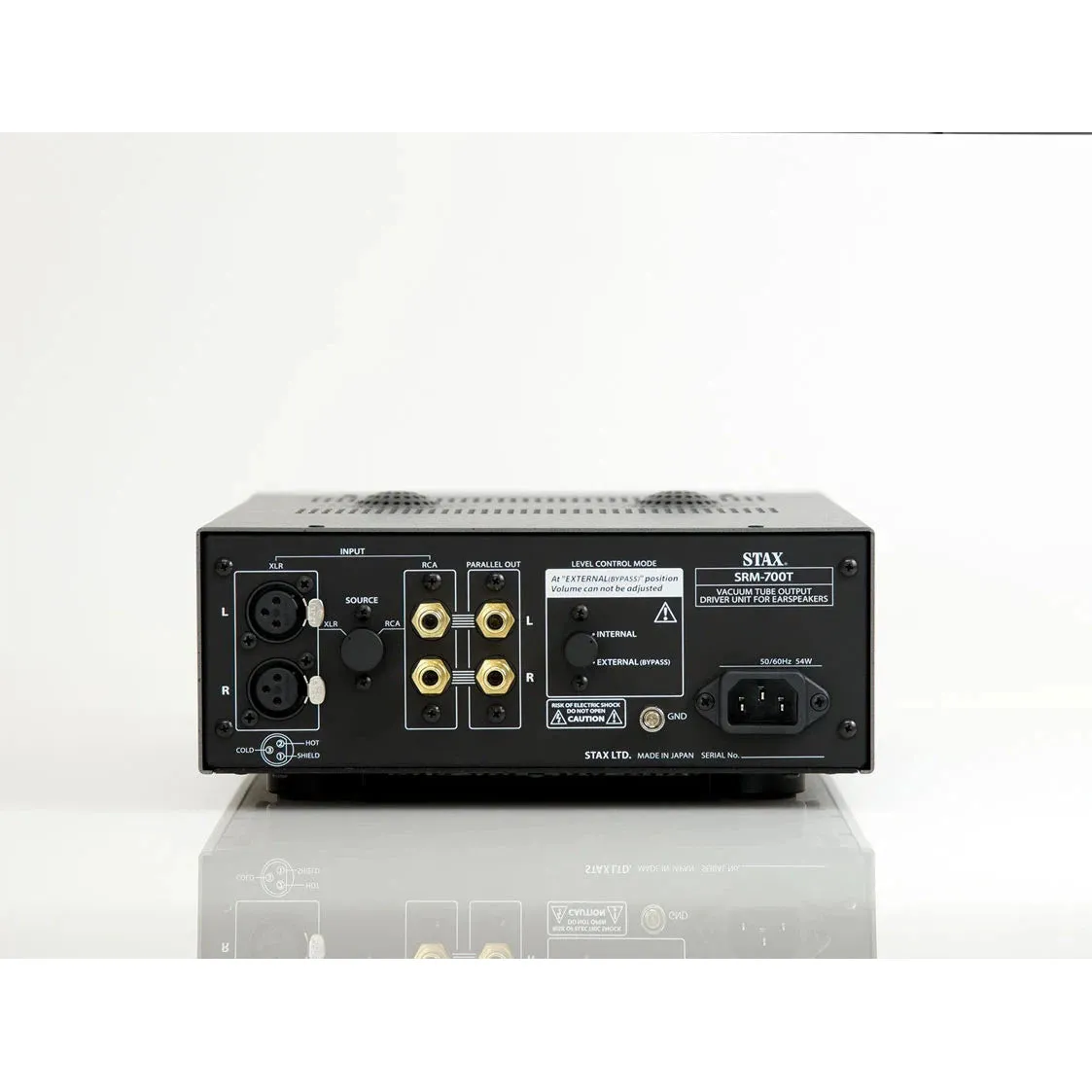

- Input terminal: RCA x 1, XLR x 1
- Output: RCA parallel output terminal
- Power consumption: 46W
- Dimension: 240W x 103H x 393D mm (maximum protruding portion included)
- Weight: 6.3kg
